Model	Used Pressure (kg/cm2)	Max Pressure (kg/cm2)	Weight (kg)
JCD-02S	4 - 26	50	0.8
JCD-02H	15 - 200	230
JCD-02HH	20 - 360	600

Operating Voltage / Current
AC250V / 3A	DC24V / 160mA

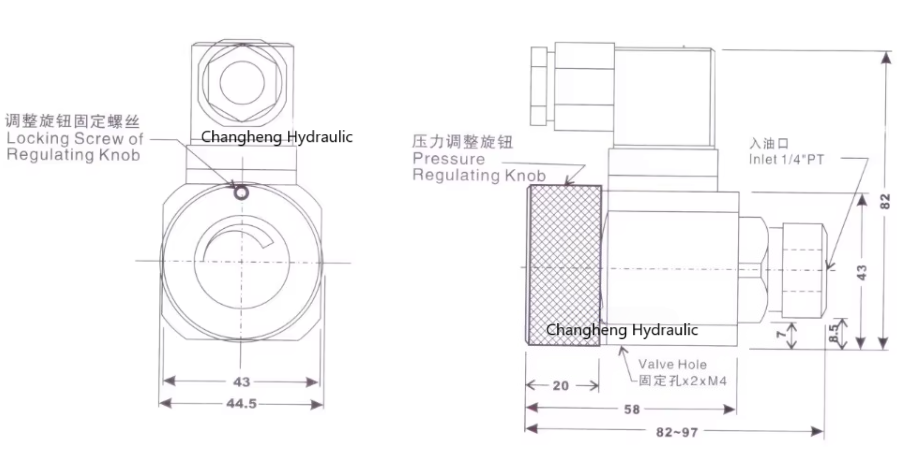

Drawing size:

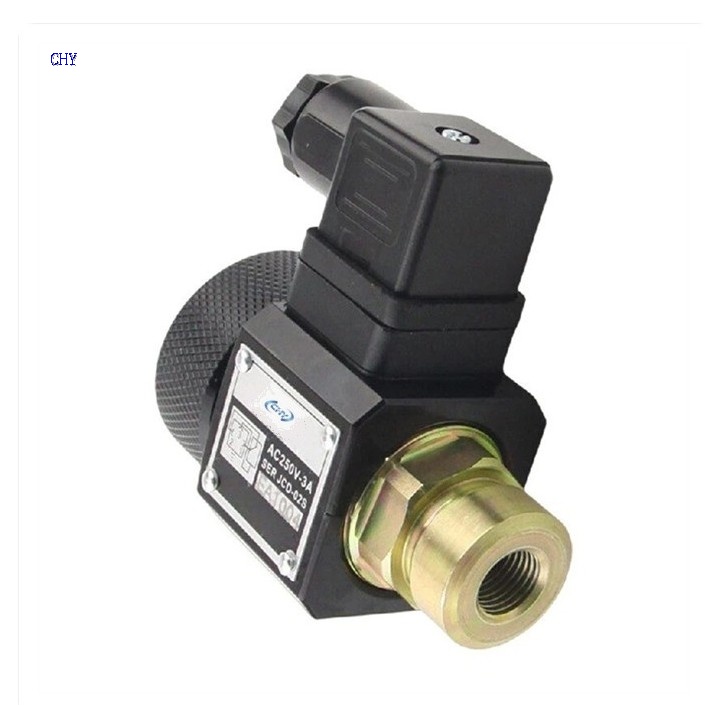

JCD-02S JCD-02H JCD-02HH pressure switches is a hydraulic electrical conversion component that uses the pressure of liquid to open and close electrical contacts. When the system pressure reaches the set value of the pressure relay, an electrical signal is sent out to activate electrical components (such as electromagnets, motors, time relays, electromagnetic clutches, etc.), causing the oil circuit to release pressure, reverse direction, and execute sequential actions of the components, or turn off the motor to stop the system from working, providing * * protection, etc.

Our company Changheng Hydraulic produces various pressure switches with small size, advanced technology, low flow resistance, complete product specifications, and a pressure range of 0-400KG. The installation methods are complete: internal thread, external thread, plate installation, and pipe installation! With reliable quality and long service life, it is widely used in the field of automation control in various industries and highly praised by users from all walks of life.
