How to order:
|
Model |
Rated pressure |
Max pressure |
Weight |
|
JCS-02N |
20-210 kg/cm2 |
230 kg/cm2 |
1.0kg |
|
JCS-02NL |
15-60 kg/cm2 |
230 kg/cm2 |
1.0kg |
|
JCS-02NLL |
5-40 kg/cm2 |
60 kg/cm2 |
1.0kg |
|
JCS-02H |
20-500 kg/cm2 |
600 kg/cm2 |
1.0kg |
|
Max voltage/current |
Min voltage/ current |
|
250V/3A 125V/5A |
DC 24V/ 160 mA |

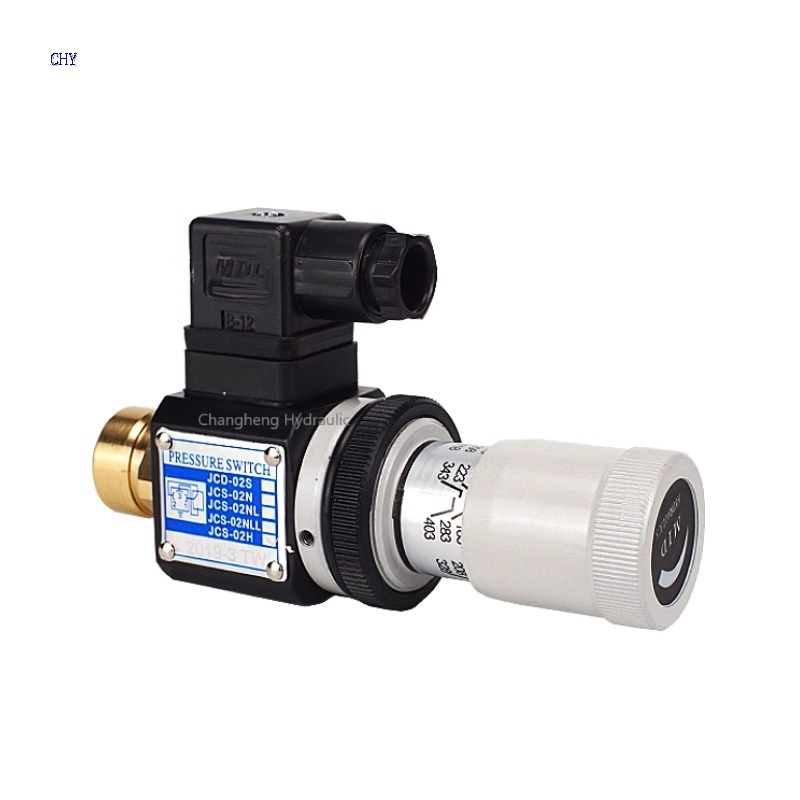

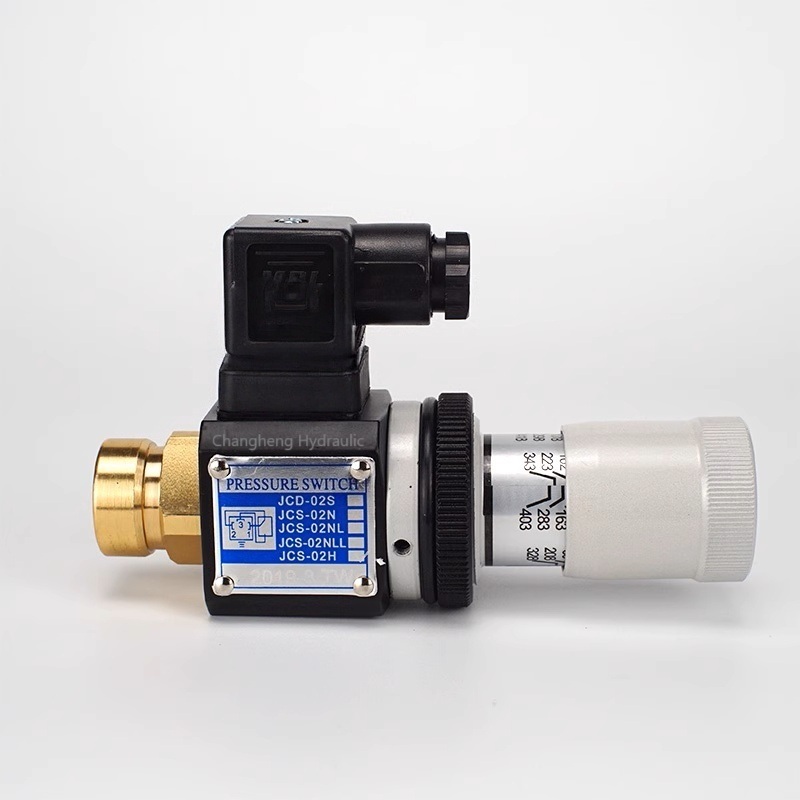

Characteristics and functions of Changheng Hydraulic JCS pressure switches:
1.Japanese Hualka oil seal, no oil leakage.
2.Taiwan Omron micro switch, precise control, long service life.
3.The handle holder is coated with pearl chrome, which has a strong texture and good hand feel.
4.There are various installation methods such as internal thread, external thread, plate installation, and pipe installation.
Pressure switches are commonly used in control systems to protect the air pressure, water pressure, and oil pressure systems of machine tools. In the manipulation and control system, it can control the working state of the machine tool or issue corresponding signals through pressure changes in the pneumatic or hydraulic system.
The application scope of this product is electromagnetic, the brand is CHY(Changheng Hydraulic), the model is JCS-02N JCS-02H JCS-02NL JCS-02NLL, the contact load is specified in the instructions, the contact switching current is specified in the instructions, the contact switching voltage is specified in the instructions, the contact form is specified in the instructions, the rated current is 3A, the rated voltage is 250V, the protective features are specified in the instructions, the coil power supply is specified in the instructions, and the coil power is specified in the instructions.
The related cargos:
MAP series hydraulic pressure switch
Our advantages:
A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Respect client's ideas and provide suggestions.
C: Best quality and competitive price.
Changheng Hydraulic is a modernized enterprise in Shenzhen China, specialized in producing hydraulic gear pumps, piston pumps,orbital motors, valves and pressure switches etc. The Company is equipped with a variety of advanced precision machining and inspection equipment, among which machining center, CNC lathes, full-automatic 3D measuring instrument, specialized gear tester, and standardized test bench of gear pump and orbital motor are introduced from Japan, German and USA. The Company has also actively imported advanced technologies and management concepts both at home and abroad and been equipped with comprehensive and scientific quality management system. Since its establishment, the Company has always been engaged in relevant product application in hydraulic, and transportation industries both at home and abroad. The products have been widely applied in engineering machinery, automobile, plastic machinery, shoe leather machinery, light industry, die casting machinery, metallurgy machinery, mine machinery, wood working machinery, metal-cutting machines as well as other hydraulic systems, featuring high efficiency, robustness, reliability and stability. Equipped with strong technical force and professional QC personnel, the company’s various products with stable performance, reliable quality and considerable after-sales serves. Further, Changheng has promised that any quality issue will be guaranteed in one year. Over the years, our quality products and perfect after-sales services have received favorable comments from the majority of customers. It is your correct choice to select Changheng Hydraulic products. Welcome your enquires!
